Galvanized Pipe Making Machine

A: Normally it will take 50-60 working days after down payment. For the procution capacity, it depends on pipe size and thickness, also machine running speed, normally for small machines the daily production weight is around 10-15tons, and for big machines, it will be 20-30tons, even for FX76 and above models, it could reach 40-60tons.

A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

A: Normally we will get 30% as deposit, and balance 70% should be paid before loading containers. By the way, we can accept T/T, L/C and other payment methods.

A: We provide one year guarantee period after the test running, during this period, we offer free service including repair of replacement. After one year, we also provide life time service and take cost price. Our service will be 24 hours*7days.

A: Normally one set of roller will be totally 70PCS, which includes feeding, forming, welding, sizing and straightening. If you have two sizes but the raw material width is same, you only need to buy/ change the sizing and straightening part. For an example: 40x40mm square the width is 160mm, if you want to make 30x50mm, the width is also 160mm, then 40x40mm and 30x50mm can share the forming and welding parts, you only need to change the sizing and straightening parts, which will be 30PCS of rollers. Also if making the round pipe is OD 50.8mm, means the width is also 160mm, you also only need to change sizing sizing and straightening parts.

A: The only difference is the roller changing, for other process is all the same. And also for the thickness part, normally this machine can make the round tube of thickness 3.0mm, if making square or rectangular tubes, the Max thickness should be 2.0mm, means 1.0mm less than round tube because for change tubes from round to square shape need more strength.

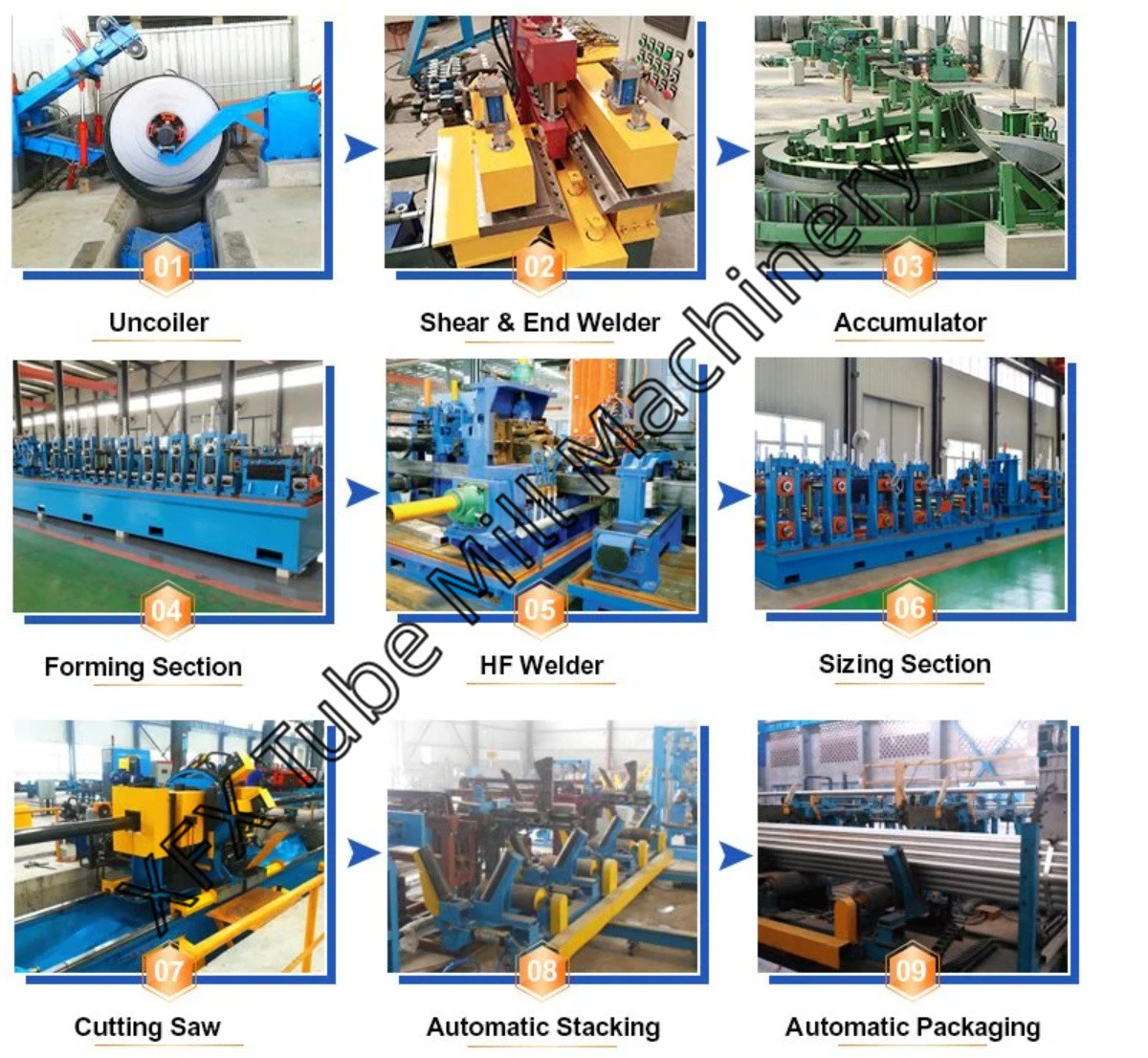

A: A galvanized pipe making machine works by feeding a strip of metal through a series of rollers and welding the edges together to form a pipe. The pipe is then passed through a galvanizing process to coat it with zinc for protection against corrosion. The process begins with a coil of raw material which is fed into the machine. The strip is first flattened and straightened by rollers and then passed through a pre-welding station where the edges are prepared for welding. The edges are then heated and pressed together by a high-frequency welding unit to form a continuous seam. The welded seam is then passed through a series of sizing and shaping rollers to form the desired pipe size and shape. Once the pipe is formed, it is passed through a galvanizing bath which coats the surface with molten zinc. The pipe is then cooled and cut to the desired length before being sent for further processing or packaging.

A: 304/304L and 316/316L are stainless steel grades that can be used in pipe production. While 304 grade has great corrosion resistance and strength; due to low carbon content, 316 series exhibit lower strength and can be welded. Galvanized pipes are steel pipes that are treated with a zinc coating to prevent corrosion.

A: No, a galvanized pipe making machine is specifically designed for the production of galvanized pipes and may not generally be equipped to produce pipes with special surface finishes other than galvanization. The galvanization process involves immersing the pipes in a molten zinc bath, which results in a specific appearance and characteristics of the surface coating. If you require pipes with special surface finishes such as painting, powder coating, or other decorative or protective coatings, a different type of machine or additional equipment may be needed. These processes typically involve different techniques, application methods, and drying/curing processes compared to the galvanization process.

A: Yes, it is possible to produce galvanized pipes with different lengths using the same galvanized pipe making machine. The machine can be designed to have adjustable cutting mechanisms that allow for varying lengths of pipes to be produced. Typically, the machine incorporates a cut-off machine or a similar cutting mechanism in the production line. This component can be adjusted to cut the pipes to the desired length. By modifying the settings or programming of the machine, operators can set the required length for each specific pipe.
