Description

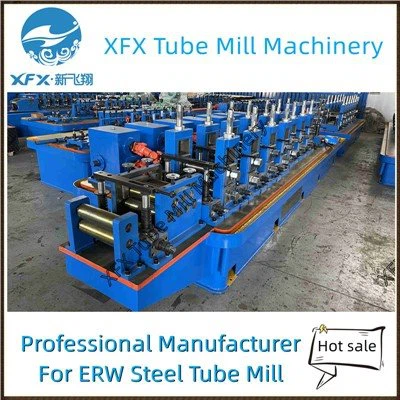

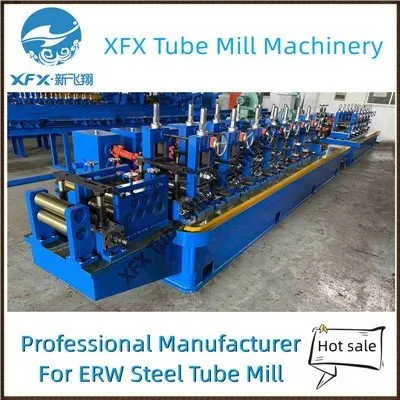

Erw Tube Mill, also known as Electric Resistance Welded Tube Mill, is a high-speed machine that produces welded steel pipes and tubes using electric resistance welding processes. The machine uses a combination of electrical current and mechanical pressure to join two edges of a steel strip or coil, creating a continuous steel tube that is cut to required lengths. Erw Tube Mill has a variety of applications in industries such as construction, automotive, agriculture, and gas and oil industries.
Features
- High productivity and quality: The ERW pipe making machine uses a continuous welding process that allows for high productivity and faster pipe production compared to other methods. The resistance welding process used on ERW pipe machines produces strong, reliable welds that provide structural integrity and pipe durability.
- Versatility: ERW tube mill is cable to produce a wide range of tube sizes and shapes, including round, square, and rectangular tubes, making them suitable for multiple applications in industries such as construction, automotive, and furniture.
- Energy-efficient: ERW tube mill consumes less energy compared to other tube manufacturing methods, contributing to cost savings and reducing carbon footprint.ERW tube mills also offer cost advantage while having lower operational costs due to their high productivity.
- Precise dimensional control: ERW tube mills can maintain tight dimensional tolerances, ensuring the produced tubes meet the desired specifications.
ERW tube mill is special equipment for making tubes of round, square and other shapes. This ERW tube mill line adopts advanced roll forming technology and precision structure to make sure the stable production progress of tubes.
production flow
Main Parameters
|
Strip coil material |
Carbon Steel, Galvanized Steel, HR and CR Steel |
|
Pipe diameter |
7-165mm |
|
Pipe thickness |
0.2-5.5mm |
|
Production speed |
20-120m/min |
|
Place of region |
Yangzhou City, Jiangsu Province, China |
Erw Pipe Machine Model
| Model | Diameter of welded pipe (mm) | Wall thickness of welded pipe (mm) | Speed of machine (m/min) | Power of main motor (k/w) | High-frequency power (kw) |
| HG16 | 8-25 | 0.25-1.0 | 30-100 | 30 | 60 |
| HG25 | 8-32 | 0.35-1.3 | 30-100 | 45 | 100 |
| HG32 | 13-50.8 | 0.5-2.0 | 30-90 | 110 | 150 |
| HG50 | 20-63.5 | 0.6-2.5 | 30-90 | 160 | 200 |
| HG60 | 25-63.5 | 0.8-3.0 | 20-80 | 185 | 250 |
| HG76 | 25-80 | 1.2-4.0 | 20-70 | 200 | 300 |
| HG90 | 32-90 | 1.5-4.5 | 20-60 | 110*2 | 400 |
| HG115 | 38-115 | 2.0-5.0 | 20-60 | 160*2 | 400 |
| HG165 | 80-165 | 2.0-6.0 | 15-50 | 200*2 | 500 |
| HG219 | 90-219 | 3.0-8.0 | 15-50 | 250*2 | 600 |
| HG273 | 165-355 | 4.0-10.0 | 15-40 | 250*1/185*2 | 800 |
| HG300 | 165-355 | 4.0-12.0 | 15-30 | 250*2/200*2 | 1200 |
We can also design ERW pipe mill according to customer’s individual requirement.
Auxiliary Equipment For ERW Tube Machine
Finished Installation For ERW Pipe Mill Line
