Description

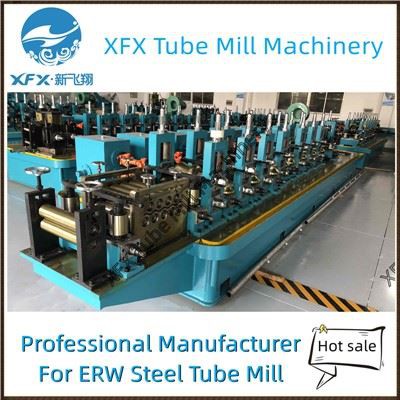

This Welded Tube Mill Machine is an advanced equipment for producing metal pipes, especially steel pipes. It adopts advanced rolling forming principle, and can form metal coil into welded pipe. Although it looks compact, the equipment integrates several functional units, including coil processing, strip preparation, roll forming, high-frequency welding, sizing, cutting and finishing, which provides a comprehensive solution for the production of metal pipes. In addition, the equipment is designed with a highly automated production process, which can quickly roll steel pipes ranging from 0.25 to 12mm and ensure uniform specifications. This increases its efficiency and helps reduce production costs to meet large-scale processing needs.
Features
1. Roller forming principle: This Welded Tube Mill Machine adopts advanced roller forming principle, and the metal coil is gradually formed into welded pipe through the action of multiple rollers. This forming method can ensure the dimensional accuracy and shape consistency of welded pipe and improve the product quality.
2. Suitable for multiple models: it provides multiple models to meet the production requirements of different pipe sizes and thicknesses. Customers can choose suitable models according to their own needs to realize customized production.
3. Quick roll change: The equipment adopts a quick roll change mechanism during processing, which makes the roll change easier and faster. This helps to reduce downtime in production, improve production efficiency and reduce the need for manual intervention.
4. High-frequency welding technology: it is equipped with high-frequency welding unit, which can realize high-frequency induction welding, quickly heat the metal edge, realize high-quality welding, and improve welding efficiency and weld quality.
Standard Models
| Model | Diameter of welded pipe (mm) | Wall thickness of welded pipe (mm) | Speed of machine (m/min) | Power of main motor (k/w) | High-frequency power (kw) |
| HG16 | 8-25 | 0.25-1.0 | 30-100 | 30 | 60 |
| HG25 | 8-32 | 0.35-1.3 | 30-100 | 45 | 100 |
| HG32 | 13-50.8 | 0.5-2.0 | 30-90 | 110 | 150 |
| HG50 | 20-63.5 | 0.6-2.5 | 30-90 | 160 | 200 |
| HG60 | 25-63.5 | 0.8-3.0 | 20-80 | 185 | 250 |
| HG76 | 25-80 | 1.2-4.0 | 20-70 | 200 | 300 |
| HG90 | 32-90 | 1.5-4.5 | 20-60 | 110*2 | 400 |
| HG115 | 38-115 | 2.0-5.0 | 20-60 | 160*2 | 400 |
| HG165 | 80-165 | 2.0-6.0 | 15-50 | 200*2 | 500 |
| HG219 | 90-219 | 3.0-8.0 | 15-50 | 250*2 | 600 |
| HG273 | 165-355 | 4.0-10.0 | 15-40 | 250*1/185*2 | 800 |
| HG300 | 165-355 | 4.0-12.0 | 15-30 | 250*2/200*2 | 1200 |
XFX also offers non-standard model according customer’s requirement.
Production Process:
Drawing For Metal Tube Machine:
Installed MS Tube Mill At Customer’s Site:
