Description
This Square Pipe Welding Machine, also known as resistance welding machine (ERW), is an advanced equipment for manufacturing steel pipes by high-frequency welding. The principle is to roll the steel plate into a circular tube shape, and then melt and squeeze the two edges together to make a straight seam tube. This machine plays an important role in industrial manufacturing. It can handle various pipes and provide efficient and high-quality welding solutions. In addition, it helps to control the heat input, consistency and accuracy of each pass, and can provide repeatability in various projects, so that the pipeline can be welded evenly without any fracture during the welding process.
Features
1. High-frequency welding method: This Square Pipe Welding Machine adopts high-frequency welding method, which can not only ensure efficiency in production, but also provide uniform melting and extrusion effects, thus ensuring the quality and stability of weld.
2. Diversified pipe processing: The equipment can handle a variety of pipes, including carbon steel, galvanized steel, hot rolled coil and CRC steel. This diversity makes it suitable for the needs of different industrial fields and provides greater flexibility for manufacturers.
3. Combined roller: It adopts the design of combined roller, which enables it to weld pipes with different specifications. By replacing the appropriate roller, it can flexibly adapt to the production of pipes with different sizes and improve production efficiency.
4. Long warranty period and lifetime after-sales service: We will provide you with long warranty period and lifetime after-sales service. This commitment reflects our confidence in its quality, and also provides reliable technical support for customers to ensure the stable operation and efficient production of the equipment.
Details
Application: Building pipe, furniture tube, liquid and gas pipe
Company type: Real manufacturer with own workshop and milling machines
Machine condition: New,we don’t sell second hand machines
Product name: Tube welding machine
Pipe material: Carbon steel, Galvanized steel, HRC, CRC steel
Place of origin: Jiangsu, China
Company brand: XFX
Voltage: 380V-50Hz, also can be customized
Machine weight: about 30ton
After-sales Service: Guarantee period provided, also offer lifetime after sale service
Supply Ability: Yearly 60 sets for Pipe welding Machine
Port of loading: Shanghai port
Working Flow:
Steel coil - Forming part (roll form to round tube) - Welding part (HF welding) - Sizing part (change round shape to square) - Cutting saw (speed tracking cutting) - Tube run out and collection
Model:
Machine | Tube OD | Tube OD | Thickness | Square tube size (mm) | Thickness | Shaft DIA | Main motor | HF welder | Speed |
FX16 | Φ8-25 | ¼"-1" | 0.2-1.0 | 7x7-20x20 | 0.2-0.8 | 40/20 | 22 | 100 | 30-120 |
FX16P | Φ8-32 | ¼"-1¼" | 0.3-1.0 | 7x7-25x25 | 0.3-0.8 | 40/20 | 30 | 100 | 30-120 |
FX25 | Φ8-32 | ¼"-1¼" | 0.3-1.2 | 7x7-25x25 | 0.3-1.0 | 40/25 | 37 | 100 | 30-120 |
FX25P | Φ10-38 | ⅜"-1½" | 0.4-1.2 | 8x8-30x30 | 0.4-1.0 | 40/25 | 45 | 100 | 30-120 |
FX28 | Φ10-38 | ⅜"-1½" | 0.4-1.8 | 8x8-30x30 | 0.4-1.5 | 45/30 | 55 | 100 | 30-110 |
FX28P | Φ12-50 | ½ "-2" | 0.5-1.8 | 10x10-40x40 | 0.5-1.5 | 45/30 | 75 | 100 | 30-110 |
FX32 | Φ12-50 | ½ "-2" | 0.5-2.2 | 10x10-40x40 | 0.5-1.8 | 50/35 | 90 | 150 | 30-110 |
FX32P | Φ16-63 | ⅝"-2½" | 0.6-2.2 | 12x12-50x50 | 0.6-1.8 | 50/35 | 110 | 150 | 30-110 |
FX45 | Φ16-63 | ⅝"-2½" | 0.6-2.5 | 12x12-50x50 | 0.6-2.0 | 55/35 | 110 | 150 | 30-100 |
FX45P | Φ19-76 | ¾"-3" | 0.7-2.5 | 15x15-60x60 | 0.7-2.0 | 55/35 | 132 | 150 | 30-100 |
FX50 | Φ19-76 | ¾"-3" | 0.7-3.0 | 15x15-60x60 | 0.7-2.2 | 60/40 | 132 | 200 | 30-90 |
FX50P | Φ25-89 | 1"-3½" | 0.8-3.0 | 20x20-70x70 | 0.8-2.0 | 60/40 | 160 | 200 | 30-90 |
FX60 | Φ25-89 | 1"-3½" | 0.8-3.5 | 20x20-70x70 | 0.8-2.5 | 65/45 | 160 | 200 | 30-80 |
FX60P | Φ32-102 | 1¼"-4" | 0.9-3.3 | 25x25-80x80 | 0.9-2.3 | 65/45 | 185 | 250 | 30-80 |
FX76 | Φ32-102 | 1¼"-4" | 1.0-4.0 | 25x25-80x80 | 1.0-3.0 | 70/50 | 200 | 250 | 30-70 |
FX76P | Φ38-114 | 1½"-4½" | 1.2-4.0 | 30x30-90x90 | 1.2-3.0 | 75/50 | 220/110x2 | 300 | 30-70 |
FX89 | Φ38-114 | 1½"-4½" | 1.5-4.5 | 30x30-90x90 | 1.5-3.5 | 80/55 | 250/132x2 | 300 | 20-60 |
FX89P | Φ50-127 | 2"-5" | 1.8-4.5 | 40x40-100x100 | 1.8-3.5 | 85/55 | 132x2 | 400 | 20-60 |
FX114 | Φ63-140 | 2½"-5½" | 2.0-5.0 | 50x50-110x110 | 2.0-4.0 | 90/60 | 160x2 | 400 | 15-50 |
FX114P | Φ76-165 | 3"-6½" | 2.0-5.0 | 60x60-130x130 | 2.0-4.0 | 100/60 | 160x2 | 400 | 15-50 |

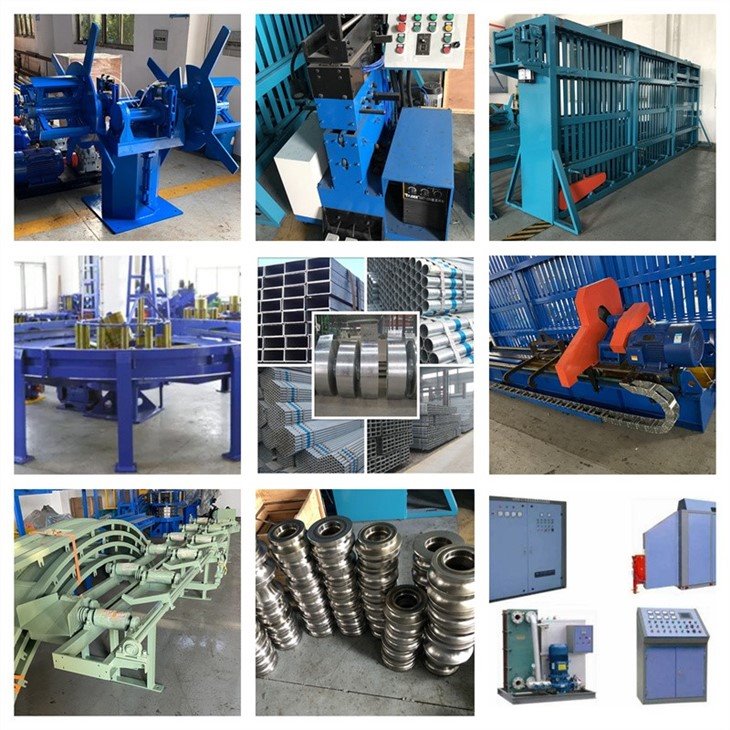

Auxiliary Parts:
Double side entry, Shearing and butt welding, Material storage accumulator, Pipe cutting, Run out table, Roll tooling, High frequency welder.
